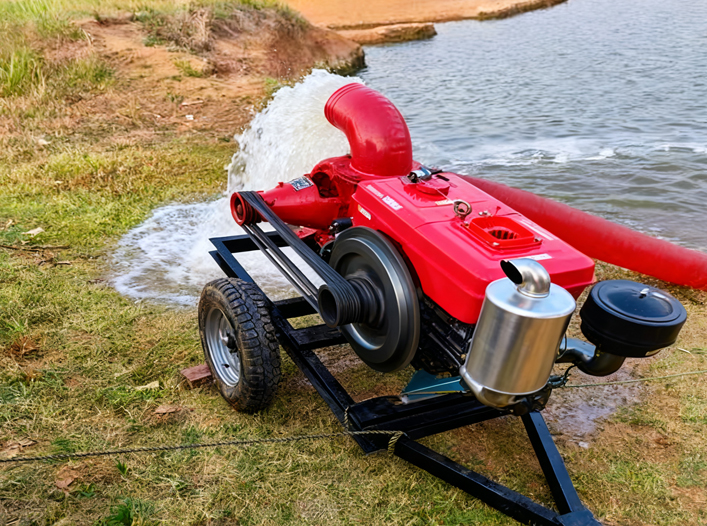

Diesel engine fire mixed flow pump

Key Features

Simple structure, reliable operation, easy assembly and disassembly, small size, light weight, large flow rate, and high efficiency.

Two types of drives are available: direct drive and belt drive. Commonly used power sources include electric motors and diesel engines.

Viewed from the pump inlet, the impeller rotates counterclockwise (clockwise for the 650HW-7S).

Standard HW-S type pumps are designed, manufactured, and inspected according to GB/T13008 and JB/T6667 standards.

Specifications

Size

Flow (m ³/h)

Head (m)

Power (kw)

Speed range (r/min)

6inch

180-223m ³/h

5-12.5m

4-11KW

1450-2900r/min

8inch

360-500m ³/h

5-12.5m

7.5-30KW

1200-1600r/min

10inch

444-720m ³/h

5-14.3m

11-37KW

980-1600r/min

12inch

581-1035m ³/h

3.9-12.5m

11-55KW

730-1300r/min

14inch

745-1000m ³/h

4.4-8m

15-30KW

730-980r/min

We provide OEM and ODM services, and can customize specifications, colors, and sizes to find your best solution.
