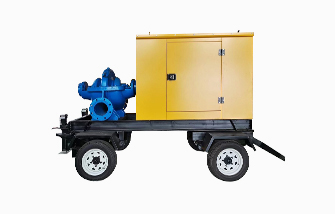

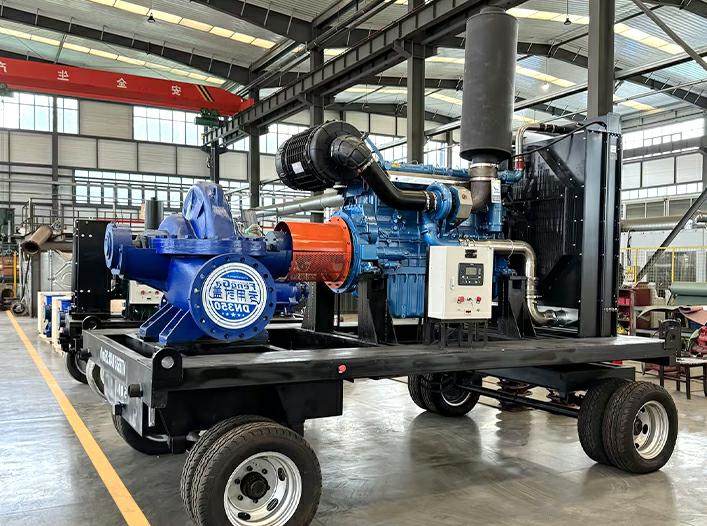

Diesel Engine Double-suction Split Pump

HRZL - TC/SH diesel double suction split case pump is a single-stage, double suction horizontal split case centrifugal pump. It is suitable for conveying clean water and non-corrosive liquids, with a medium temperature upper limit of 80°C; if cooling water is introduced into the bearing body, hot water below 130°C can be conveyed. By changing the materials of the sealing ring, sleeve, and impeller, muddy water containing sand can be conveyed; by changing the material of the pressure-bearing parts, the pump's inlet pressure can be increased.

This pump is widely used in water supply in factories, mines, cities, power stations, as well as farmland irrigation and drainage and various water conservancy projects. Pumps equipped with copper impellers and copper sealing rings can also be provided according to user needs for conveying finished oil and other media.

Key Features

High efficiency and energy saving: TC/SH pumps are highly efficient and are also suitable for a wide range of flow rates and small power motors, with excellent energy-saving effects.

Excellent anti-cavitation performance: TC/SH pumps are specially designed with excellent anti-cavitation performance. Compared with traditional double-suction pumps, it saves costs.

Less noise and vibration: Reduce noise, vibration, more economical and environmentally friendly, and extend the service life of the equipment.

Simple structure and easy maintenance: The pump body is separated into upper and lower parts. During maintenance, only the upper part needs to be removed without removing the pipes, which is convenient and quick.

Combination of multiple materials: It can be made of a combination of multiple materials according to different needs, and has a wider range of applications.

Specifications

Size

Flow (m3/h)

Head (m)

Power (kw)

Speed Range (r/min)

6inch

112-180m

35-84m

30-55KW

2900r/min

8inch

160-351m

31-100m

37-110KW

2900r/min

10inch

320-576m

11-140m

22-132KW

1450r/min

12inch

504-972m

10-98m

30-315KW

1450r/min

14inch

800-1440m

10-140m

55-710KW

1450-1470r/min

We provide OEM and ODM services, and can customize specifications, colors, and sizes to find your best solution.
