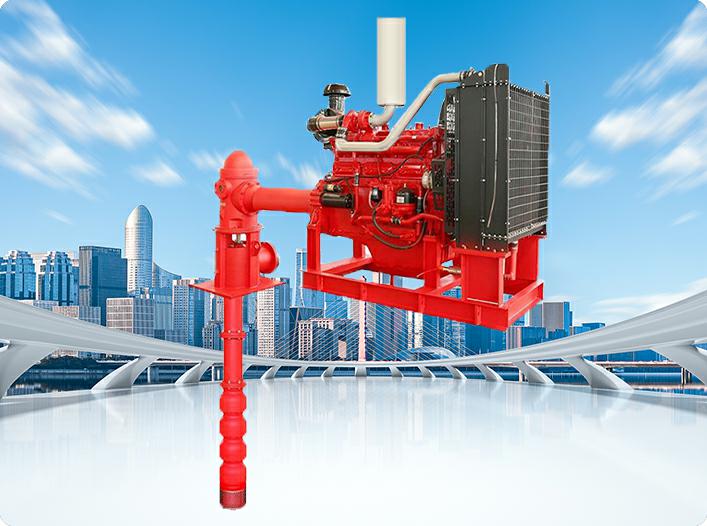

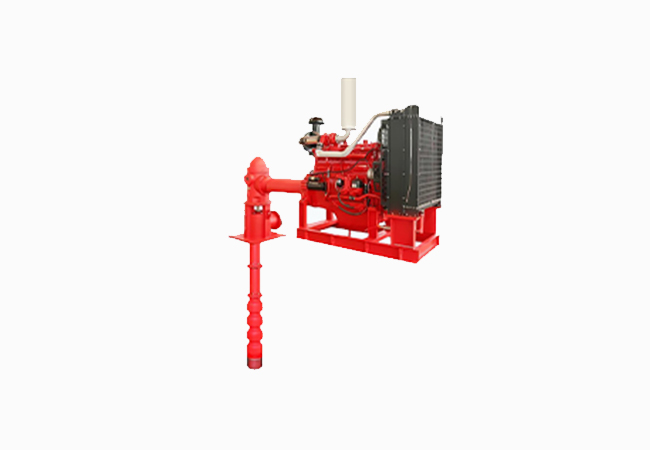

Diesel Engine Long Shaft Deep Well Pump Set

XBC/GJ axial flow deep well fire pump (including long shaft deep well, vertical axial flow deep well, diesel engine deep well long shaft, etc.) is optimized and designed based on the original LC or OJ vertical long shaft pump.

HRZL - TC/LYC diesel engine long shaft deep well pump is composed of multiple centrifugal impellers, water pipes, transmission shafts, pump seats, gearboxes, diesel engine assemblies, control cabinets and other components. The pump seat, gearbox, and diesel engine assembly are above the wellhead. The power of the diesel engine assembly is transmitted to the impeller shaft through the gearbox and the concentric transmission shaft of the water pipe, thereby generating flow and pressure.

Key Features

Long-axis design: Able to pump water from deep wells, expanding firefighting capabilities.

Diesel engine driven: It can operate independently without relying on external power.

Large Capacity: Capable of delivering large water flows to extinguish large fires.

Rugged construction: Made of durable materials to withstand harsh environments.

Rapid deployment: It is conducive to rapid response and deployment in emergency situations.

Specifications

Size

Flow (m3/h)

Head (m)

Power (kw)

Speed Range (r/min)

4inch

20-160L/S

4Mpa

17-121KW

1450-r/min

6inch

15-160L/S

6Mpa

17-170KW

1450-r/min

8inch

15-160L/S

8Mpa

22-231KW

1450-r/min

10inch

15-160L/S

1Mpa

30-308KW

1450-r/min

12inch

15-160L/S

2Mpa

38-330KW

1450-r/min

We provide OEM and ODM services, and can customize specifications, colors, and sizes to find your best solution.

What can I do for you?

Customer Service

Customize specifications, colors, and as OEM produce products.

Support

Provide DDP (Delivered Duty Paid) service.Most machines are in-stock for quick delivery.

Factory Testing

Our testing area is capable of handling large-scale pump models both in wet and dry pit configurations up to 400 HP.
