Multi-stage Clear Water Centrifugal Pump

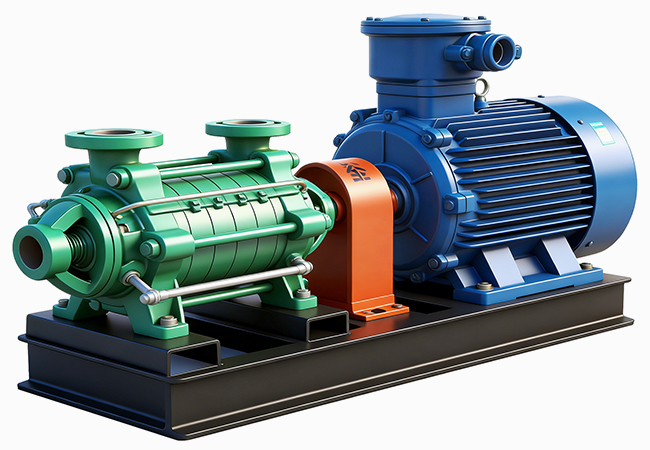

HRZL-DG Multi-stage Clear Water Centrifugal Pump
Flowrate:10-12980m³/h
Head:90-1104m
Power:11-500KW
Speed range:2950r/min
Get a Quote
HRZL-DG horizontal multi-stage clean water centrifugal pump, a single-suction multi-stage segmented structure, is used to transport clean water and liquids with similar physical and chemical properties to water. The maximum temperature of the transported medium is up to 130°C.
It is suitable for boiler feed water, factory and urban water supply. The pump body is horizontal, the inlet and outlet are vertically upward, and the original shaft seal adopts a packing seal.
Key Features
The hydraulic model is advanced, with high efficiency and wide performance range.
The pump runs smoothly and has low noise.
The shaft seal adopts soft packing seal or mechanical seal. The seal is safe and reliable, the structure is simple, and the maintenance is convenient and quick.
The shaft is a fully sealed structure to ensure that it does not contact with the medium, does not rust, and has a long service life.
Specifications
We provide OEM and ODM services, and can customize specifications, colors, and sizes to find your best solution.
What can I do for you?
Customer Service
Customize specifications, colors, and as OEM produce products.
Support
Provide DDP (Delivered Duty Paid) service.Most machines are in-stock for quick delivery.
Factory Testing
Our testing area is capable of handling large-scale pump models both in wet and dry pit configurations up to 400 HP.
